The Harrison Bridge

The Harrison Bridge is a contentious strip of road to cycle on. Connecting Wiggins and Fowler Street on the West Lafayette side to Salem and Union in Lafayette, it also has onramps for River Road, Canal Road, and 3rd Street as well. A vehicle collision with a cyclist in 2015 galvanized the community and inspired a “Take the Lane” event in response large part contributed to the founding of Bicycle Lafayette . It was restriped last year to help delineate a bicycle lane along most of its length, but there are still some things that the cities and county can do to better accommodate cyclists.

Westbound

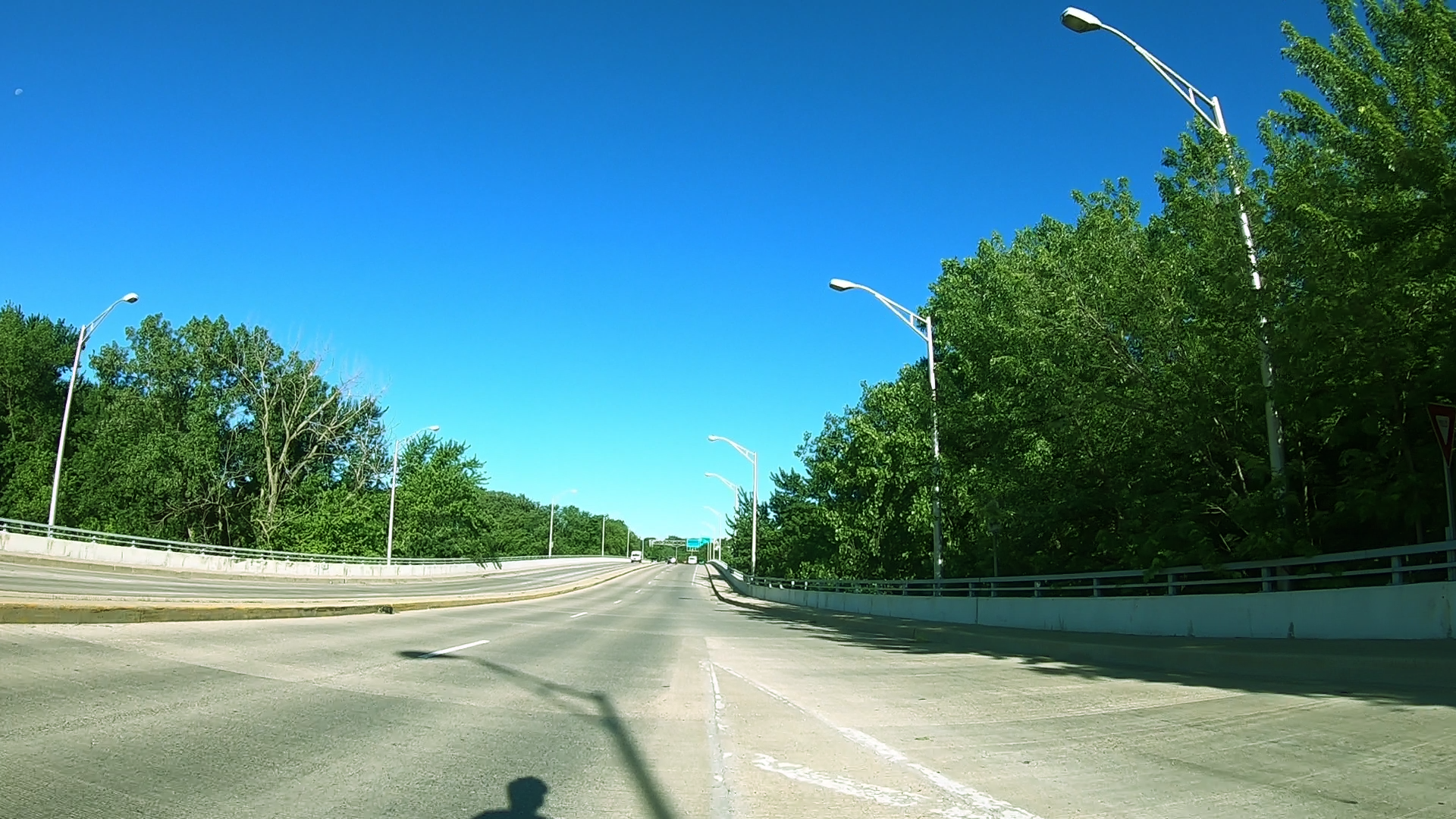

Heading toward West Lafayette from Lafayette, about 1100 feet from the Fannon Drive light, an onramp from Canal Road feeds onto the bridge. The vehicles have a yield sign, but no indication that there is a bicycle lane.

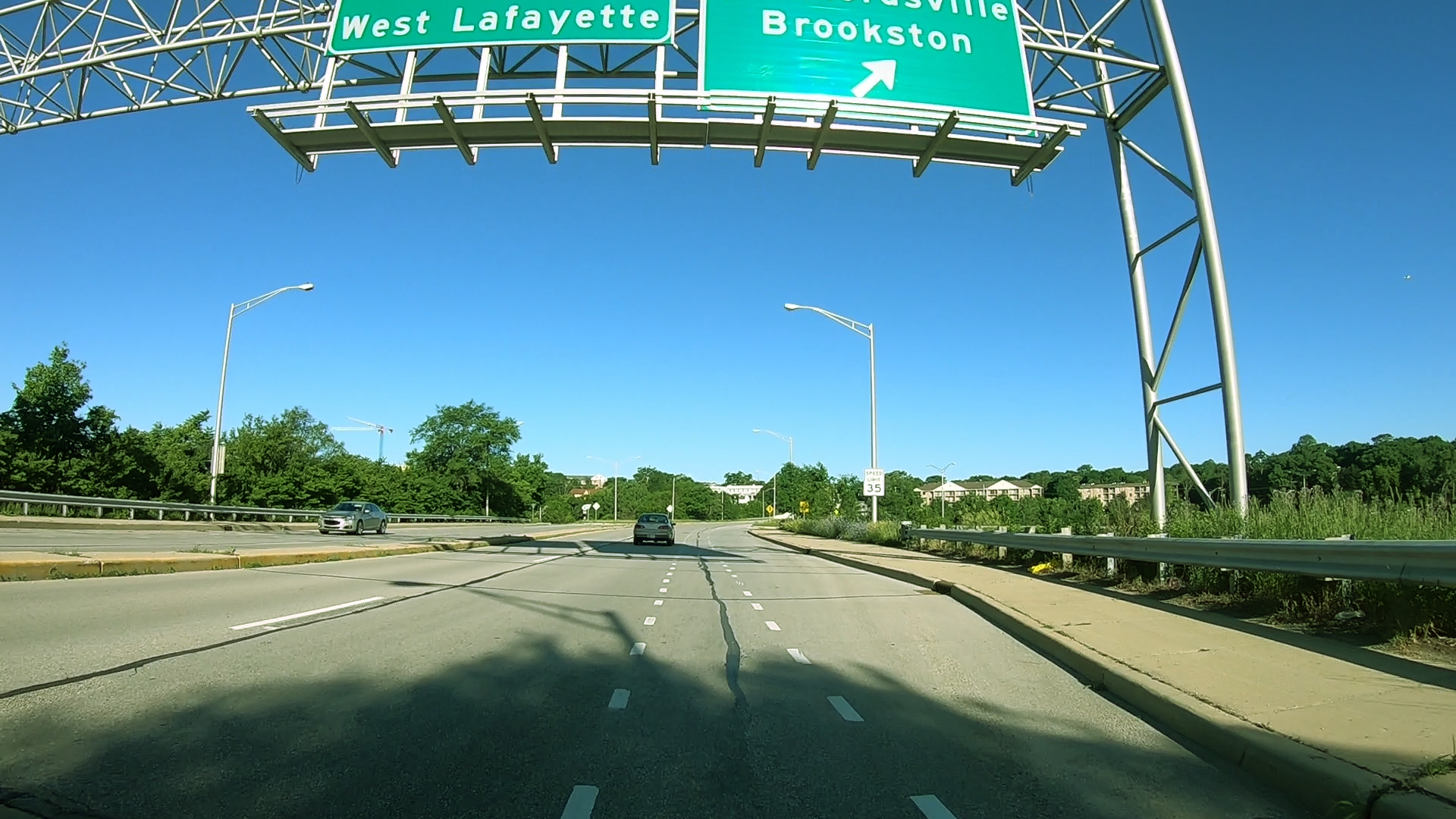

After another 1100 feet there is an offramp to River Road



There is an onramp from River Road,

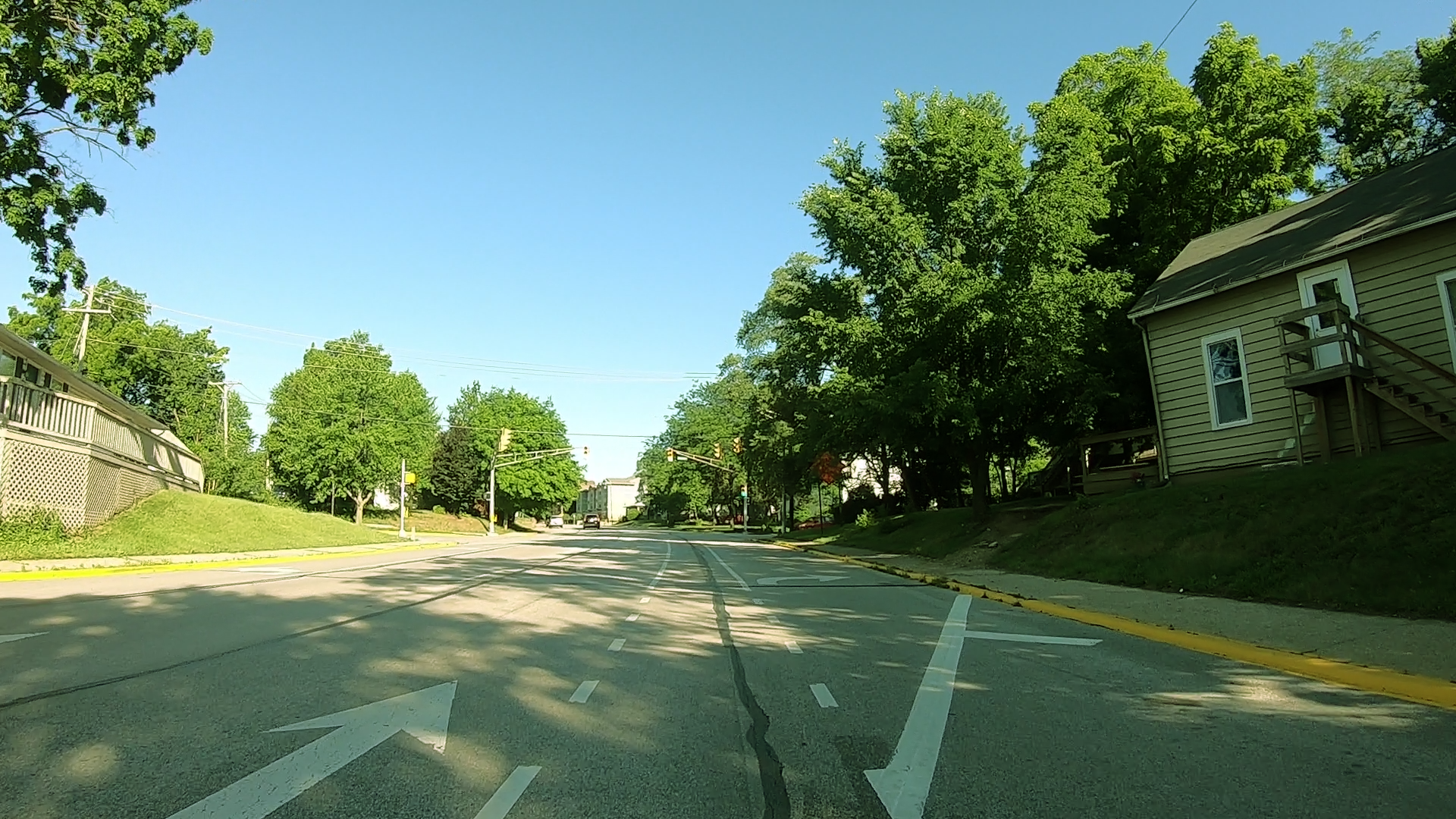

and a turn lane onto Salisbury or continuation to the intersection with Northwestern Avenue.

Eastbound

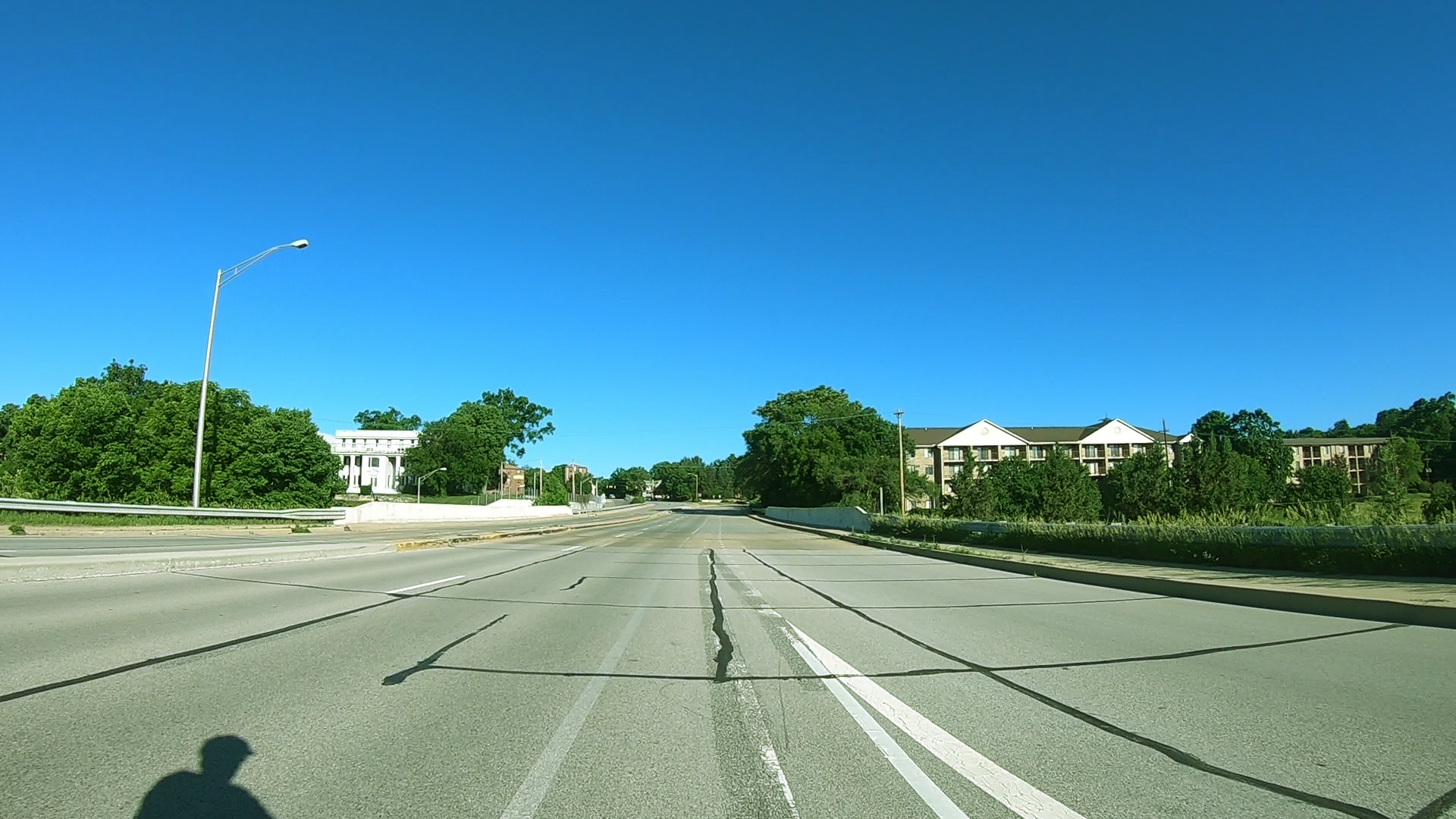

About 1/3 mile from the turn onto the bridge from the Wiggins/Salisbury intersection, the onramp from River Road crosses the bicycle lane. The vehicles have a yield sign, and a long runway to pick up speed and merge.

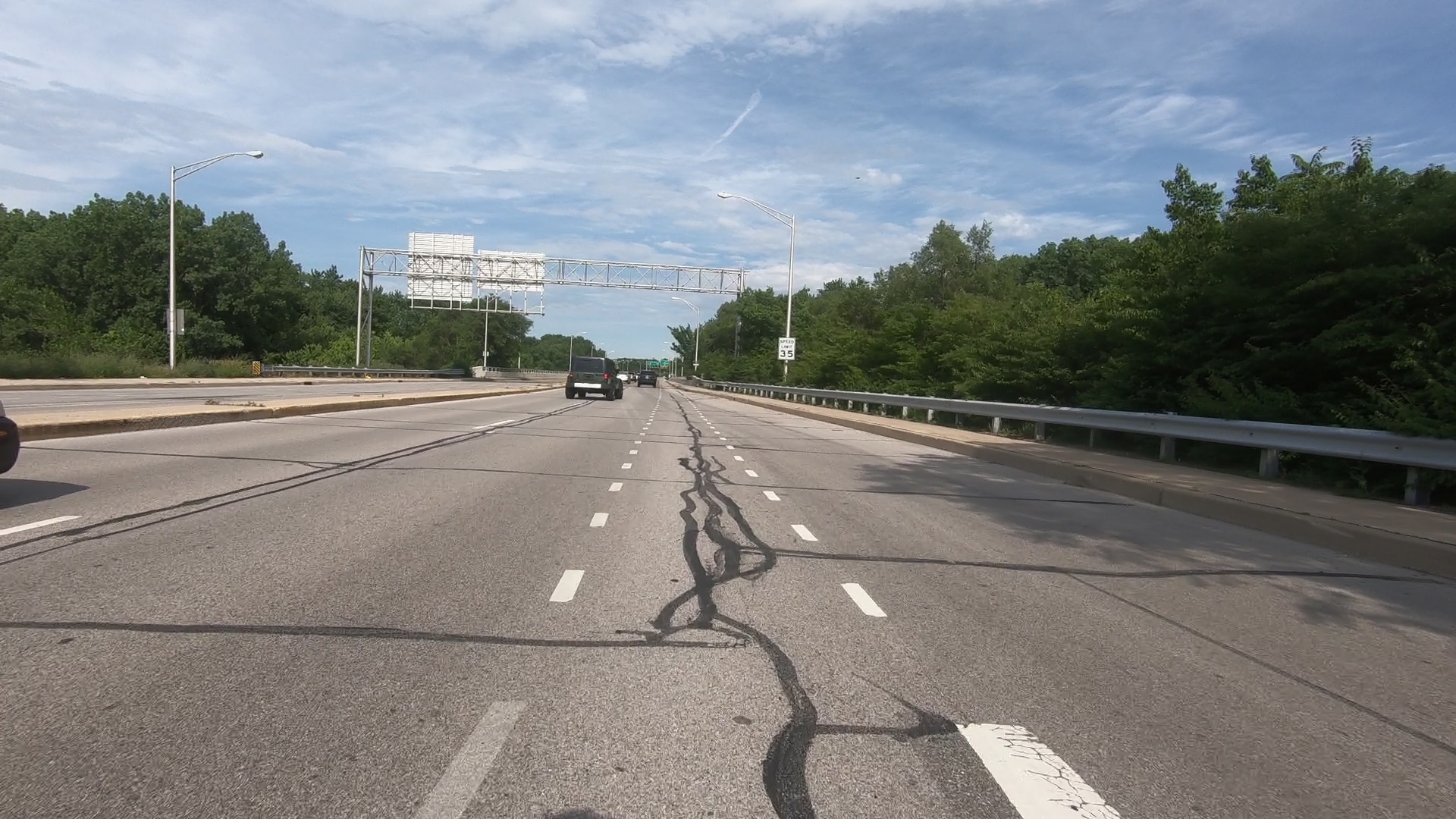

Finally, a sequence of offramps and a slight incline at the end of the bridge introduce a lot of potential conflicts with vehicles.





So what can be done?

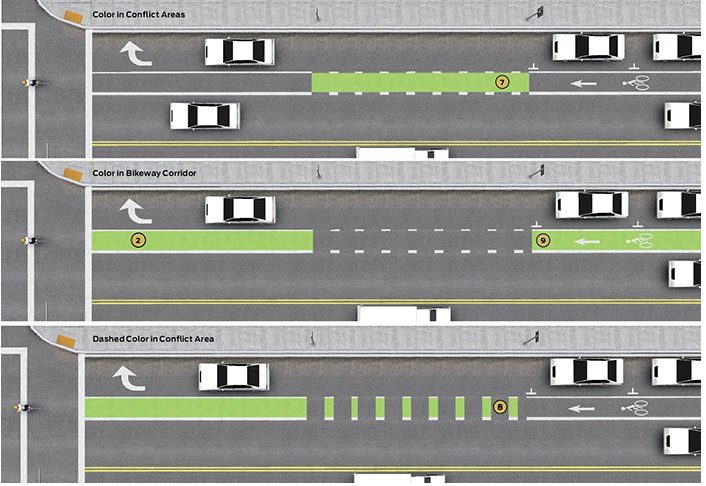

The Urban Bikeway Design Guide from NACTO notes that the color green can be used to highlight conflict areas. The onramps on either side of the bridge could be marked with dashed green paint.



CC Diane Yee

A “Yield To Bikes” Sign should be used at intersections or driveway crossings to reinforce the bicyclists have the right-of-way at colored bike lane areas. This would be most useful on the final 1100 feet eastbound, where the Canal Road and 3rd Street offramps have a high potential for conflict between cyclists and vehicles.

Added 20 June

These suggestions are not likely to be implemented, however, until the Federal Highway Administration adopts them into the Manual on Uniform Traffic Control Devices.¹

CC Sean T Evans

Finally, speed enforcement on the bridge could lower the speed difference between cyclists and cars; although the posted speed limit is 35MPH, most vehicles go well above that heading down the hill from Fowler.
